Supported sensors and gateways in SafetyCulture

The Standard Temperature & Humidity Sensor is a Long Range LoRaWAN Sensor. It includes built-in temperature and humidity monitoring and has the ability to add an external probe (not included as standard) for harsher environments.

Device details

• Manufacturer: Dragino

• Type: Temperature and Humidity Sensor

• Model number: LHT65S

• Range: 100 m / 300 ft (line of sight)

• Power source: Battery operated (replaceable CR17540 battery)

• Operating temperature:

  • Standard: -40°C to 80°C (-40°F to 176°F)

  • Probed: -55°C to 125°C (-67°F to 257°F)

• Accuracy:

  • Temperature: ± 0.8°C (± 1.4°F)

  • Humidity: ± 10% RH

The Industrial Temperature & Humidity Sensor is a LoRaWAN-enabled Temperature and Humidity Sensor widely used to measure ambient temperature and relative air humidity.

• Manufacturer: Dragino

• Type: Temperature and Humidity Sensor

• Model number: S31B-LB

• Power source: Battery operated (not replaceable)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -40°C to 80°C (-40°F to 176°F)

• Accuracy:

  • Temperature: ± 0.2°C (± 0.4°F)

  • Humidity: ± 2% RH

The Standard Temperature Sensor (with digital display and probe) is a versatile temperature sensor designed for harsh environments, offering a range of detecting probes, including food-grade options. It ensures secure, traceable data with easy exports, making it ideal for applications like food processing and cold chain storage. Integrated with LoRaWAN® technology, it provides long-term remote monitoring with low power consumption.

Device details

• Manufacturer: Milesight

• Type: Temperature Sensor

• Model number: TS301

• Range: 100 m / 300 ft (line of sight)

• Power source: Battery operated (2 × 4000 mAh ER18505 Li-SOCL2 batteries) or powered by USB-Type C

• Operating temperature: 40°C to 125°C (-40 to 257°F)

• Temperature accuracy: ± 0.5°C (1°F)

The Industrial Extreme Low Temperature Sensor (with probe) is a LoRaWAN-enabled Temperature Sensor used to monitor extremely low-temperature environments and supports readings from an external probe.

• Manufacturer: Dragino (Probe: Heraeus)

• Type: Temperature Sensor

• Model number: LTC2-LT

• Power source: Battery operated (not replaceable)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -196°C to ~150°C (-320°F to ~ 302°F)

• Temperature accuracy: 0°C to ~ 80°C: ± 0.5°C (32°F to ~ 176°F: ± 0.9°F)

The Industrial Extreme High Temperature Sensor (with probe) is a LoRaWAN-enabled temperature sensor widely used to measure extremely high-temperature environments and supports readings from an external probe.

• Manufacturer: Dragino (Probe: Heraeus)

• Type: Temperature Sensor

• Model number: LTC2-HT

• Power source: Battery operated (not replaceable)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -70°C to ~ 550°C (-94°F to ~ 1022°F)

• Temperature accuracy: 0°C to ~ 80°C: ± 0.5°C (32°F to ~ 176°F: ± 0.9°F)

The Standard Open & Close Sensor is a LoRaWAN-enabled sensor that detects a window or door's open or closed status and monitors how long it has been left open.

• Manufacturer: Dragino

• Type: Open and Close door Sensor

• Model number: LDS02

• Power source: Battery operated (2x AAA batteries)

• Range: 100 m / 300 ft (line of sight)

The Industrial Open & Close Sensor is a reliable LoRaWAN® door sensor that tracks open and close status, including duration and frequency. Powered by a long-lasting battery, it offers up to 10 years of operation and customizable alerts for extended open times, ensuring secure and efficient monitoring.

Device details

• Manufacturer: Dragino

• Type: Open and Close door Sensor

• Model number: LDS03A

• Power source: Battery operated (1 x 8500mA Li-SOIC2 battery)

• Range: 100 m / 300 ft (line of sight)

The Standard Carbon Dioxide Sensor is a LoRaWAN-enabled indoor ambiance monitoring sensor that measures temperature, humidity, and carbon dioxide (CO₂).

• Manufacturer: Milesight

• Type: Air Quality Sensor

• Model number: AM103

• Power source: Battery operated (2 x 2700 mAh ER14505 Li-SOCl2)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -20°C to 60°C (-4°F to 140°F)

• Accuracy:

  • Temperature: ± 0.2°C (± 0.4°F)

  • Humidity: 2% RH

  • Carbon dioxide (CO₂): 0°C to 50°C (32°F to 122°F): ± (30 ppm + 3% of reading)

The LED on the device indicates the following CO₂ levels:

• Green: Indicates that the CO₂ level is excellent

• Yellow: Indicates that the CO₂ level is polluted

• Red: Indicates that the CO₂ level is bad

The Standard Air Quality Sensor is a LoRaWAN-enabled indoor ambiance monitoring sensor. It's capable of measuring the following metrics:

• Temperature

• Humidity

• Carbon dioxide (CO₂)

• Particulate matter (PM10 and PM2.5)

• Formaldehyde (HCHO)

• Light

• Motion

• Total Volatile Organic Compound (TVOC)

• Barometric pressure

• Manufacturer: Milesight

• Type: Air Quality Sensor

• Model number: AM319

• Power source: 5V/1A by Type-C port

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -20°C to 60°C (-4°F to 140°F)

• Accuracy:

  • Temperature: ± 0.2°C (± 0.4°F)

  • Humidity: ± 2% RH

  • Carbon dioxide (CO₂): -10°C to 60°C (14°F to 140°F): ± (50 ppm + 5% of reading)

The LED on the device indicates the following CO₂ levels:

• Green: Indicates that the CO₂ is excellent

• Yellow: Indicates that the CO₂ is polluted

• Red: Indicates that the is CO₂ bad

The Standard Air Pressure Differential Sensor is a high-accuracy LoRaWAN differential pressure sensor, perfect for critical environments like hospital clean rooms and laboratories. It provides real-monitoring and alerts for HVAC system performance helping reduce energy consumption and prevent malfunctions.

Device details

• Manufacturer: Synetica

• Type: Differential Air Pressure Sensor

• Model: En-link Status DP

• Power source: Battery operated (2 x AA batteries)

• Range: 0 to 5,000 Pa

• Accuracy: 0.1% per range

The Standard Carbon Monoxide Sensor is a LoRaWAN-enabled Carbon Monoxide (CO) Sensor widely used to monitor levels of CO in the environment.

• Manufacturer: Polysense

• Type: Carbon Monoxide (CO) Sensor

• Model number: WxS 8800-012

• Power source: Battery operated (2 x 3.6V lithium batteries)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -40°C to 85°C (-40°F to 185°F)

The Electrical Current Sensor is a simple yet powerful metering solution that delivers real-time energy consumption data without the need for complex installations. With minute-by-minute reporting, strong signal strength, and secure encryption, it offers a cost-effective way to optimize energy use.

Device details

• Manufacturer: Vutility

• Type: Power Monitoring Sensor

• Model number: Hotdrop

• Power source: Self-powered from the monitored line

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -40°C to 85°C (-40°F to 185°F)

• Accuracy: 0.017% MoE, True-RMS

The 3-Phase Power Sensor is an advanced IoT-enabled power meter that provides real-time, accurate measurements of three-phase voltage and power. With a quick and safe installation process, it offers detailed energy data, making it a vital tool for modern power management.

Device details

• Manufacturer: Vutility

• Type: Power Monitoring Sensor

• Model: Voltdrop

• Power source: Self-powered from the monitored line

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -40°C to 85°C (-40°F to 185°F)

The Standard Sound Sensor is a LoRa-enabled sound sensor that monitors noise levels across various environments. Supporting multiple weighting measurements, it can be remotely managed via SafetyCulture, making it suitable for applications like smart buildings and noise monitoring in public spaces.

• Manufacturer: Milesight

• Type: Sound Monitoring Sensor

• Model number: WS302

• Power source: Battery operated (replaceable 2 × 2700 mAh ER14505 Li-SOCl2 batteries)

• Range: 100 m / 300 ft (line of sight)

• Operating temperature: -20°C to 60°C (-4°F to 140°F)

• Accuracy: ± 3 dB (0°C to 45°C or 32°F to 113°F)

The Standard Vibration Sensor is a LoRaWAN wireless sensor that monitors equipment conditions by measuring vibration and temperature. It offers reliable vibration data transmission, built-in processing, and easy setup, making it suitable for diverse industrial applications.

Device details

• Manufacturer: Advantech

• Type: Vibration Monitoring Sensor

• Model number: WISE-2410

• Power source: Battery operated (2 x 3.6V AA batteries)

• Frequency range: 10 - 1000 Hz

• Amplitude range: ±16g

• Operating temperature: -20°C to 80°C (-4°F to 176°F)

• Accuracy

  • 3-axis accelerometer sensor: Under 5% (FC =100 Hz)

  • Temperature sensor: -2°C with 85°C (28.4°F with 185°F)

The Signal Capture & IoT Controller enables remote control and data acquisition from multiple devices through LoRaWAN or 3G/4G networks. Its industrial design and versatile I/O interfaces make it ideal for smart factories and building automation, ensuring continuous operation even in network failures.

Device details

• Manufacturer: Milesight

• Type: IoT Controller

• Model: UC300

• Power source: 5-24 VDC

• Range: -200°C to 800°C (-328°F to 1472°F)

• Operating temperature: -20°C to 60°C (-4°F to 140°F)

The Outdoor GPS Tracker (small) is compact and offers over five years of battery life and robust performance in harsh outdoor conditions. It features periodic or movement-based tracking, with an IP67-rated housing to withstand dust, high-pressure water, and temporary submersion.

Device details

• Manufacturer: Digital Matter

• Type: GPS tracker

• Model: Yabby Edge Cellular

• Power source: Battery operated (3 × AAA batteries)

• Operating temperature: -30°C to 60°C (-22°F to 140°F); for operation in extreme temperatures use Lithium batteries

The Outdoor GPS Tracker is provides cloud-based location solving and Bluetooth gateway functionality, ensuring efficient asset management. With over five years of battery life and movement-based tracking, it's perfect for both indoor and outdoor environments.

Device details

• Manufacturer: Digital Matter

• Type: GPS tracker

• Model: Oyster Edge

• Power source: Battery operated (3 × AAA batteries)

• Operating temperature: -30°C to 60°C (-22°F to 140°F); for operation in extreme temperatures use Lithium batteries

The Off-road Vehicle Tracker offers high-precision GNSS tracking, remote immobilization, and advanced monitoring features like accident detection and harsh driving behavior analysis. It's ideal for fleet management and heavy equipment monitoring in tough environments.

Device details

• Manufacturer: Digital Matter

• Type: GPS tracker

• Model: G70

• Power source: Battery operated (3 × AAA batteries)

• Operating temperature: -30°C to 60°C (-22°F to 140°F) connected to external power

• Inputs/Outputs: 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, and 1 x Switched Ground Digital Output

The On-road Fleet & Cold Chain Temperature Tracker is a plug-and-play tracker that reads OEM parameters via an OBD port, offering insights like reading odometer and fuel level data. Compatible with a wide range of vehicles, it supports BLE 4.0 features, making it ideal for fleet management, insurance telematics, and more.

Device details

• Manufacturer: Teltonika

• Type: GPS tracker

• Model: FMM003 M1

• Power

  • Input voltage range: 10 - 30 V DC with overvoltage protection

  • Internal backup battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

• Connectivity: LTE CAT M1

• Operating temperature (without battery): -40°C to 85°C (-40°F to 284°F)

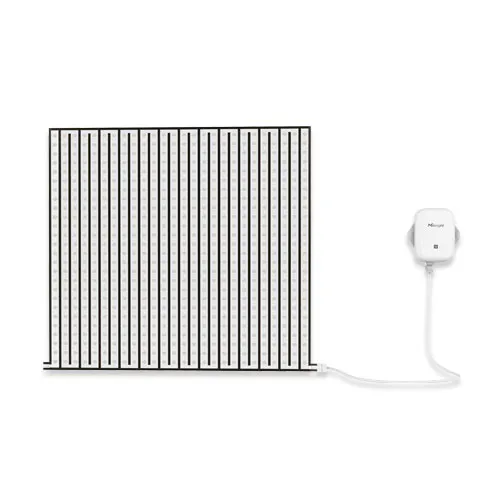

The Standard Leak Detection Sensor is designed for precise leak detection using a flexible printed membrane. Its robust, IP67-rated construction ensures long-term reliability in harsh environments, with up to 10 years of battery life, and a simple wireless setup for remote monitoring and alerts.

Device details

• Manufacturer: Milesight

• Type: Leak Detection Sensor

• Model number: EM300-MLD

• Power source: Built-in replaceable 4000 mAh battery

• Operating temperature: -30°C to 70°C (-22°F to 158°F)

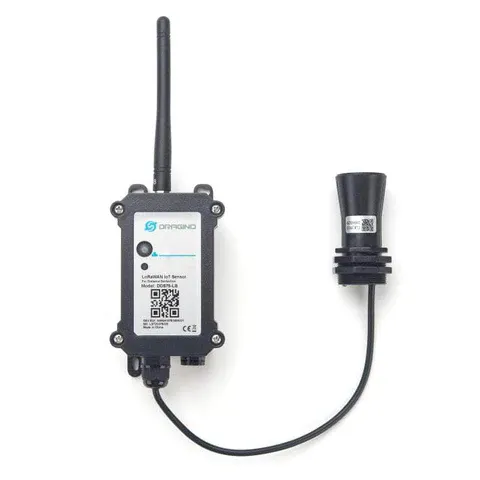

The Standard Distance & Level Sensor uses ultrasonic technology for accurate distance measurement and features temperature compensation for reliable data. This sensor is ideal for applications like liquid level monitoring, parking management, and obstacle detection.

Device details

• Manufacturer: Dragino

• Type: Ultrasonic distance sensor

• Model number: DDS75-LB

• Power source: 8500 mAh Li/SOCI2 battery

• Operating temperature: -40°C to 85°C (-40°F to 185°F)

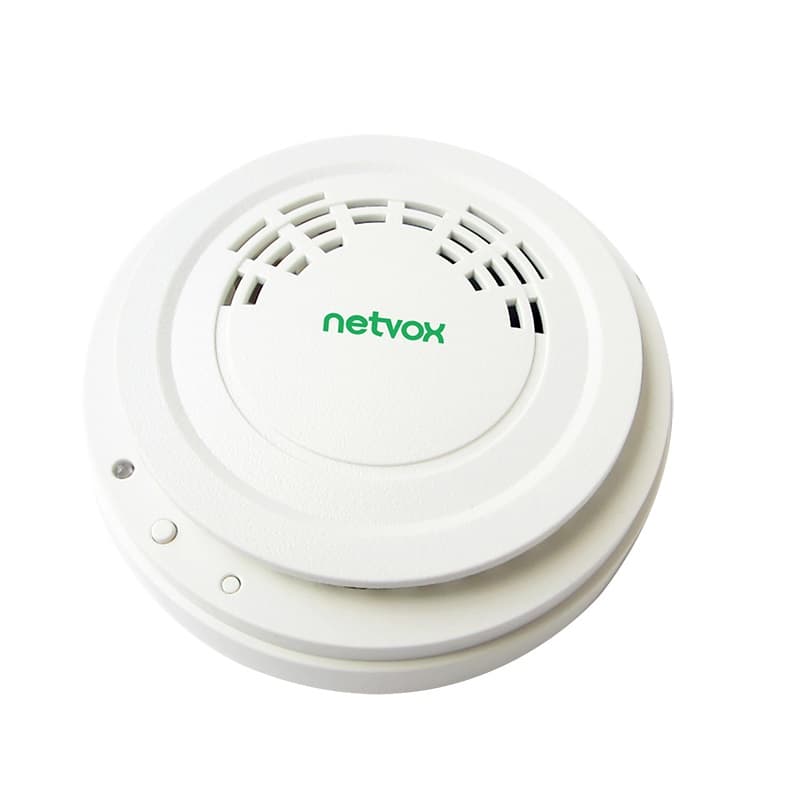

The Standard Smoke Detection Sensor uses a photoelectric sensor to monitor smoke density and sound an alarm when thresholds are exceeded.

Device details

• Manufacturer: Netvox

• Type: Smoke and high heat sensor

• Model number: RA02A

• Power source: 2x AAA alkaline batteries

• Operating temperature: -10°C to 55°C (-14°F to 131°F)

Simple to configure and cost effective, this gateway is perfect for use in areas where LoRaWAN coverage is not available or for private networks where the operator wants full control over the gateways, no matter where they are placed.

• Manufacturer: Tektelic

• Type: Cellular Gateway

• Range: 100 m / 300 ft (line of sight)

• Power source: Wall power

• Operating temperature: 0°C to 40°C (32°F to 104°F)

This Femto Gateway is a great fit for small businesses like restaurants, labs, or college campuses. It's also good for providing service in areas inside buildings where signals are weak.

• Manufacturer: Gemtek

• Type: Ethernet & Wi-Fi Gateway

• Range: 100 m / 300 ft (line of sight)

• Power source: Wall power

• Operating temperature: -10°C to 55°C (14°F to 131°F)
